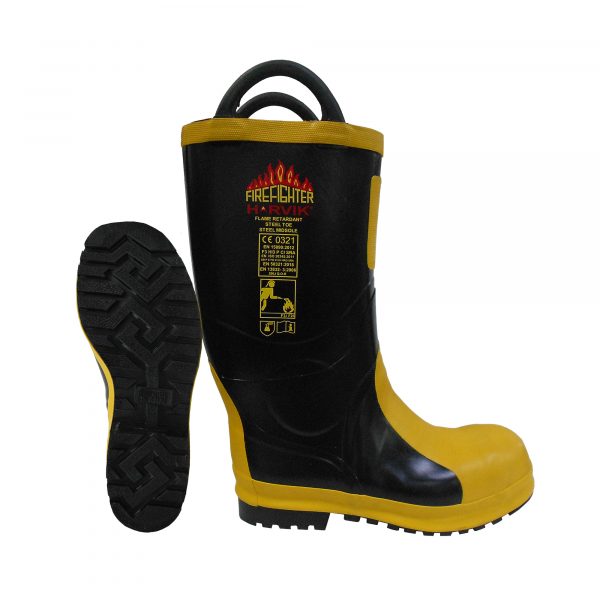

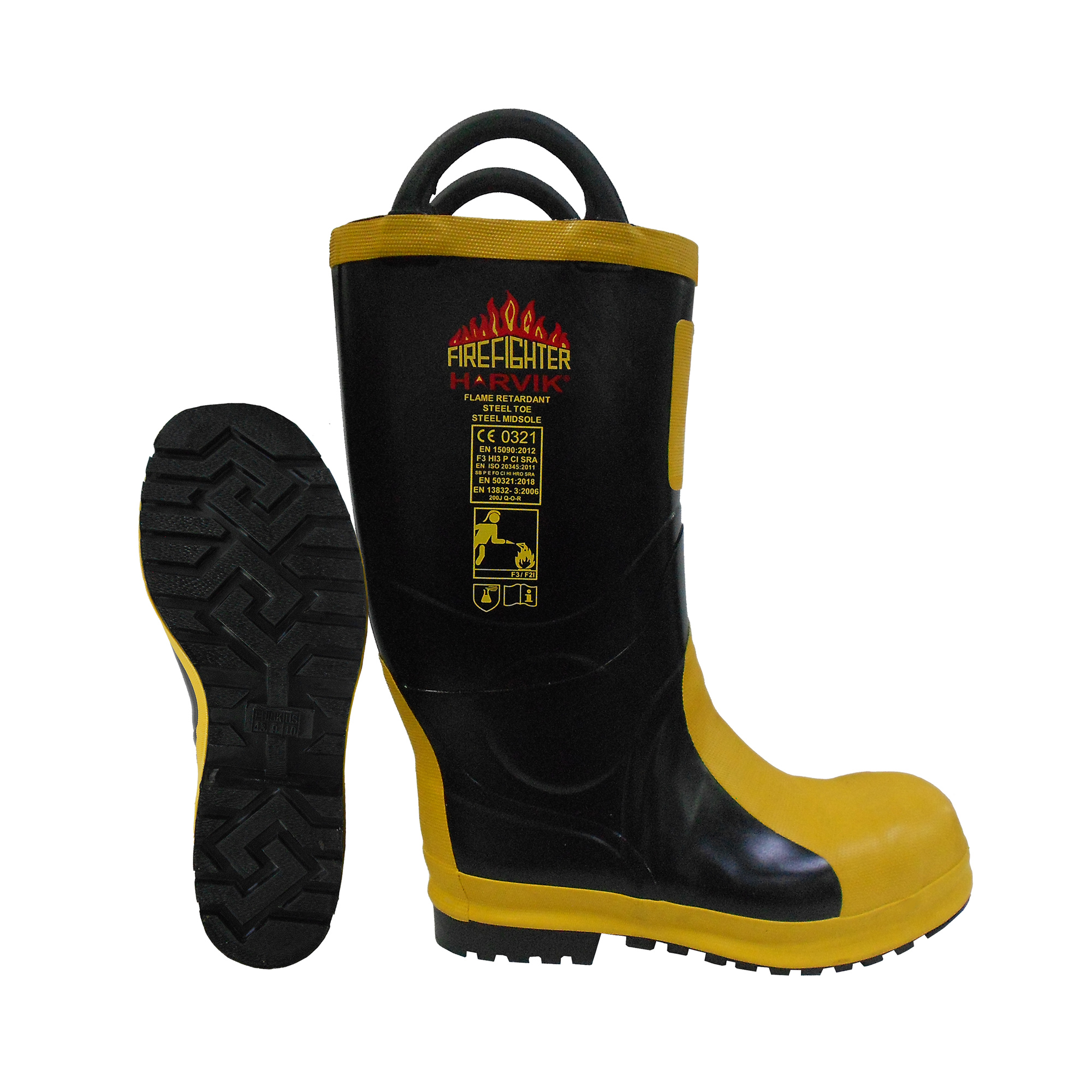

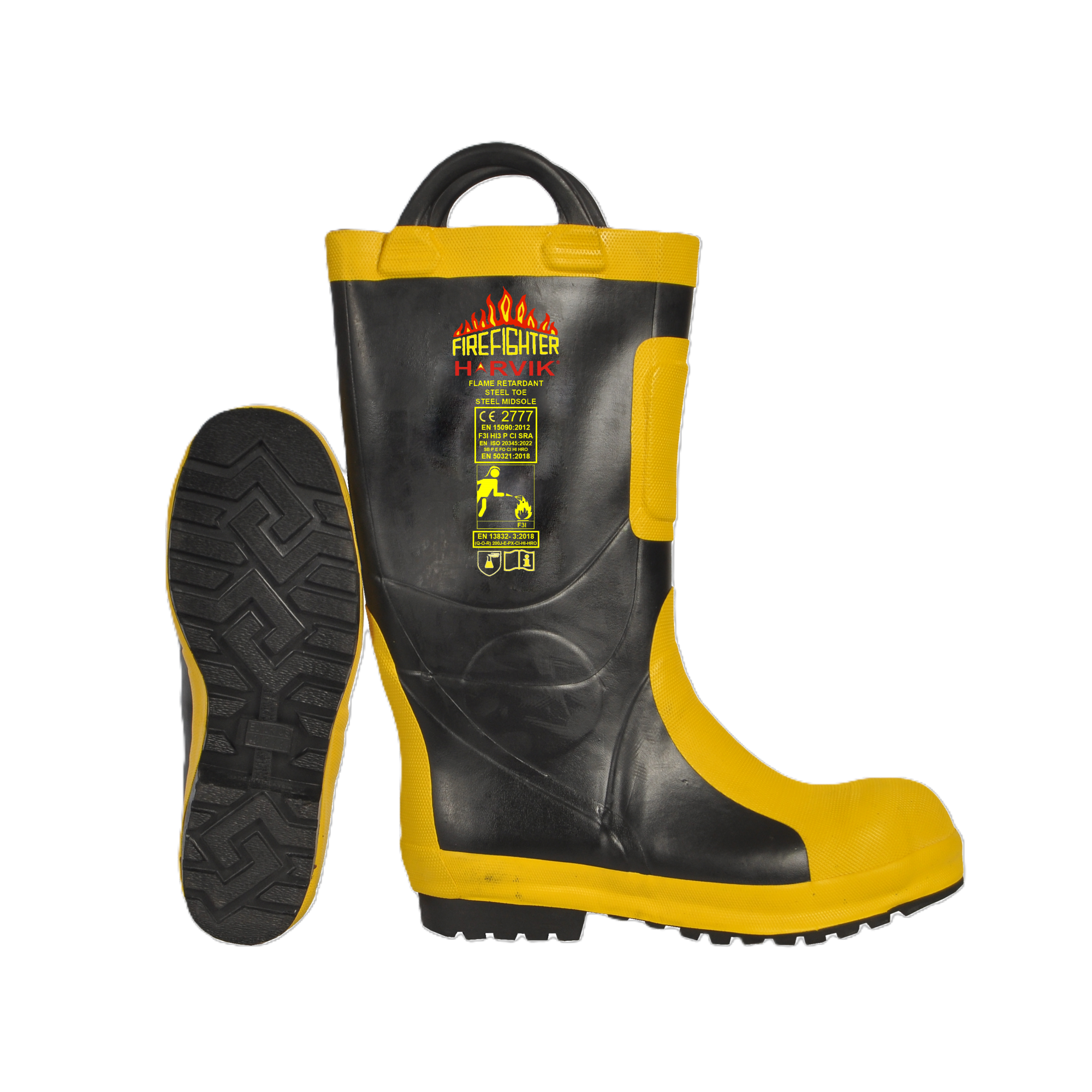

Art. 8687 HARVIK® EN F3 5KV Dielectric Firefighter (STP) Wider Calf

EU Conformity PDF
Colour Yellow / Black
Size range Euro: 37 – 48
UK : 4 – 14½
US : 5 – 15½
Type of construction Vulcanized Rubber Upper and Sole
Last/ Sole Pattern PSV/NJV
Recommendation Structural fire fighting
Firefighting involves chemical hazards (exposure)
General fire rescue
Bush fire fighting
European Standard CE Approved –
EN 15090: 2012 (F3/F2I HI3 P CI SRA)
EN ISO 20345: 2011 (SB P E CI HI HRO SRA)
EN 50321-1:2018 Class 0 (for installation with nominal voltage up to 1000V A.C. and 1500 D.C.)
EN 13832-3: 2006 (Protection Against Chemicals – 200J Q-O-R)
Australia New Zealand Standard Approved-
AS/NZS 4821: 2014 (P HI2 CI SRC)
F3/F2I = Type 3/ Type 2 footwear for firefighters suitable for fire
rescue, fire suppression, property conservation & etc. with
electrical insulating
SB = Standard Basic Protection as per EN ISO 20345
HI3 = Heat Insulation Level 3 (under EN 15090:2012)
HI2 = Heat Insulation Level 2 (under AS/ NZS 4821:2014)
CI = Cold Insulation
SRA = Slip Resistance on ceramic tile with Sodium Lauryl
SRC = SRA + Slip Resistance on steel surface with glycerine
FO = Fuel Oil Resistant Outsole
E = Heel Energy Absorption
P = Nail Penetration Resistance
HRO = Resistant to hot contact
Q = Protection against Isopropanol (solvent)
O = Protection against Ammonia solution, 25% (alkali)
R = Protection against Sodium hypochlorite, 13% of active chlorine
CSA Z195-14 / ASTM F2413-18
Grade 1 Toe protection
Compression resistance, 11kN
Penetration resistance
18 kV Electric Shock Resistance (ESR) protection
Lining Material Extra comfort with woven cotton canvas
Upper construction Flame retardant upper with hear insulation
Reinforced rubber
High visibility with black and yellow contrast
Sole / Heel Flame retardant rubber outsole
Fuel oil resistant sole suitable for inimical environment
Slip resistant vulcanized rubber outsole
Excellent abrasion resistant for extra durability
Heel energy absorption design to minimize heel impact
Catered to enter high temperature
Cold insulation sole construction
Steel Toe Cap Epoxy coated toe caps
Meets EN ISO 20345 impact and compression tests
Metal toe cap provides reliable protection in cold and hot environment
Steel Midsole Non-corrosive stainless steel
Withstands pin & sharp objects
Chemical Resistance Sole and Upper – Good resistant towards acids and alkali
Upper – performance level 5 as per EN 13832-3:2006 (Q-O-R)
Sole – Performance level 5, 4 and 5 as per EN 13832-3:2006 (Q-O-R)
Finishing Lacquer coating for weather protection
Packing Recyclable Polybag & 6 pairs in a carton

*Specifications of the product are subject to changes without prior notice for further enhancements.
