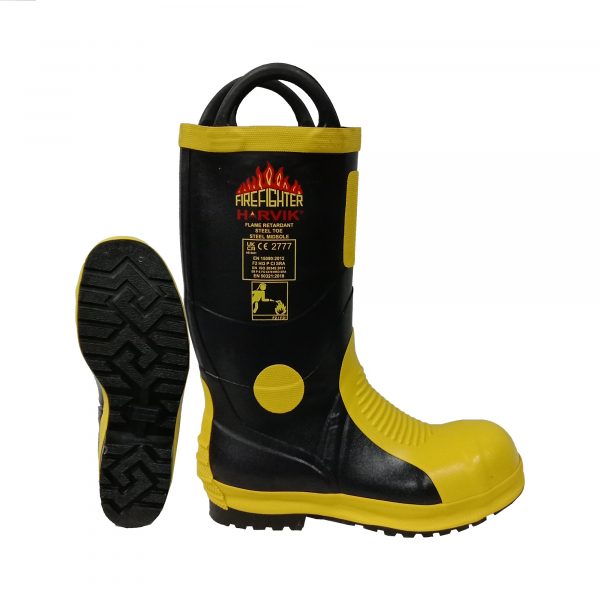

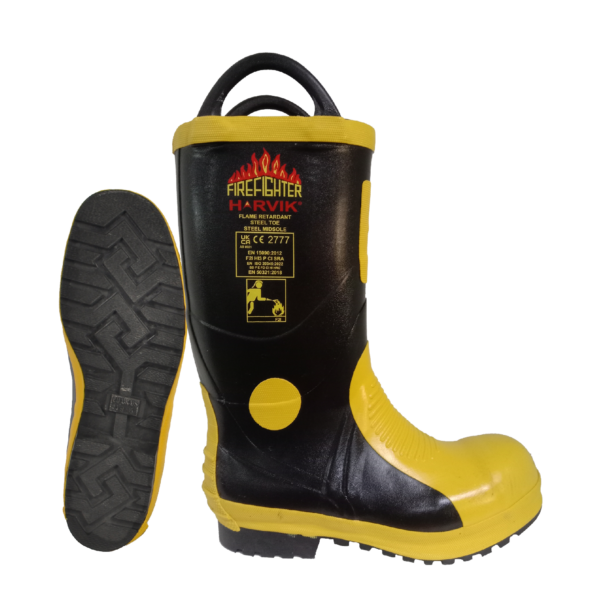

Art. 9687L HARVIK® EN/MED/AS/NZS 5KV Dielectric Firefighter (STP)

EU Conformity PDFUKCA Conformity PDF
Specification
Colour Black/Yellow
Size range Euro: 36 – 50
UK : 3½ – 15
US : 4½ – 16
Type of construction Vulcanized Rubber Upper and Sole
Last/ Sole Pattern VSV / NJV
Recommendation Structural fire fighting
General fire rescue
Bush fire fighting
Compliance

European Standard CE and UKCA Approved –
EN 15090: 2012 (F2 HI3 P CI SRA)
EN ISO 20345: 2011 (SB P E FO CI HI HRO SRA)
EN 50321-1:2018 Class 0 (for installation with nominal voltage up to 1000V A.C and 1500V D.C.)

Australian New Zealand Standard Approved –
AS/NZS 4821: 2014 (P HI2 CI SRC)

F2/F2I = Type 2 footwear for firefighters suitable for fire
rescue, fire suppression, property conservation & etc. with
electrical insulating
SB = Standard Basic Protection as per EN ISO 20345
HI3 = Heat Insulation Level 3 (under EN 15090:2012)
HI2 = Heat Insulation Level 2 (under AS/ NZS 4821:2014)
CI = Cold Insulation
SRA = Slip Resistance on ceramic tile with Sodium Lauryl Sulphate
SRC = SRA + Slip Resistance on steel surface with glycerin
FO = Fuel Oil Resistant Outsole
E = Heel Energy Absorption
P = Nail Penetration Resistance
HRO = Resistance to hot contact

CSA Z195-14 / ASTM F2413-18
Grade 1 Toe protection
Compression resistance, 11kN
Nail penetration resistance
18 kV Electric Shock Resistance (ESR) protection

Council Directive 2014/90/EU On Marine Equipment (MED)
Complies Module B & D requirements

*YY = year marking is affixed on the boot
Lining Material Extra comfort with woven cotton canvas
Upper construction Flame retardant upper with heat insulation
Waterproof
Reinforced rubber
High visibility with black and yellow contrast
Sole / Heel Flame retardant rubber outsole
Fuel oil resistant sole suitable for inimical environment
Slip resistant vulcanized rubber outsole
Excellent abrasion resistant for extra durability
Withstand 18kV of life current at dry condition
Heel energy absorption design to minimize heel impact
Catered to enter high temperature
Cold insulation sole construction
Steel Toe Cap Epoxy coated toe caps for anti-corrosion
Meets EN ISO 20345 impact and compression tests
Metal toecap provides reliable protection in cold & hot environments
Steel Midsole Non-corrosive stainless steel
Withstands pin & sharp objects
Chemical Resistance Sole & Upper – Good resistant towards acids and alkalis
Finishing Lacquer coating for weather protection
Packing Recyclable Polybag & 6 pairs in a carton

*Specifications of the product are subject to changes without prior notice for further enhancements.
