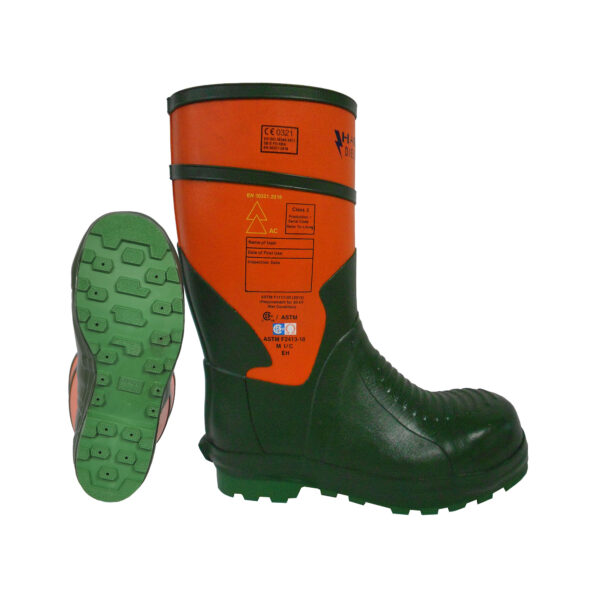

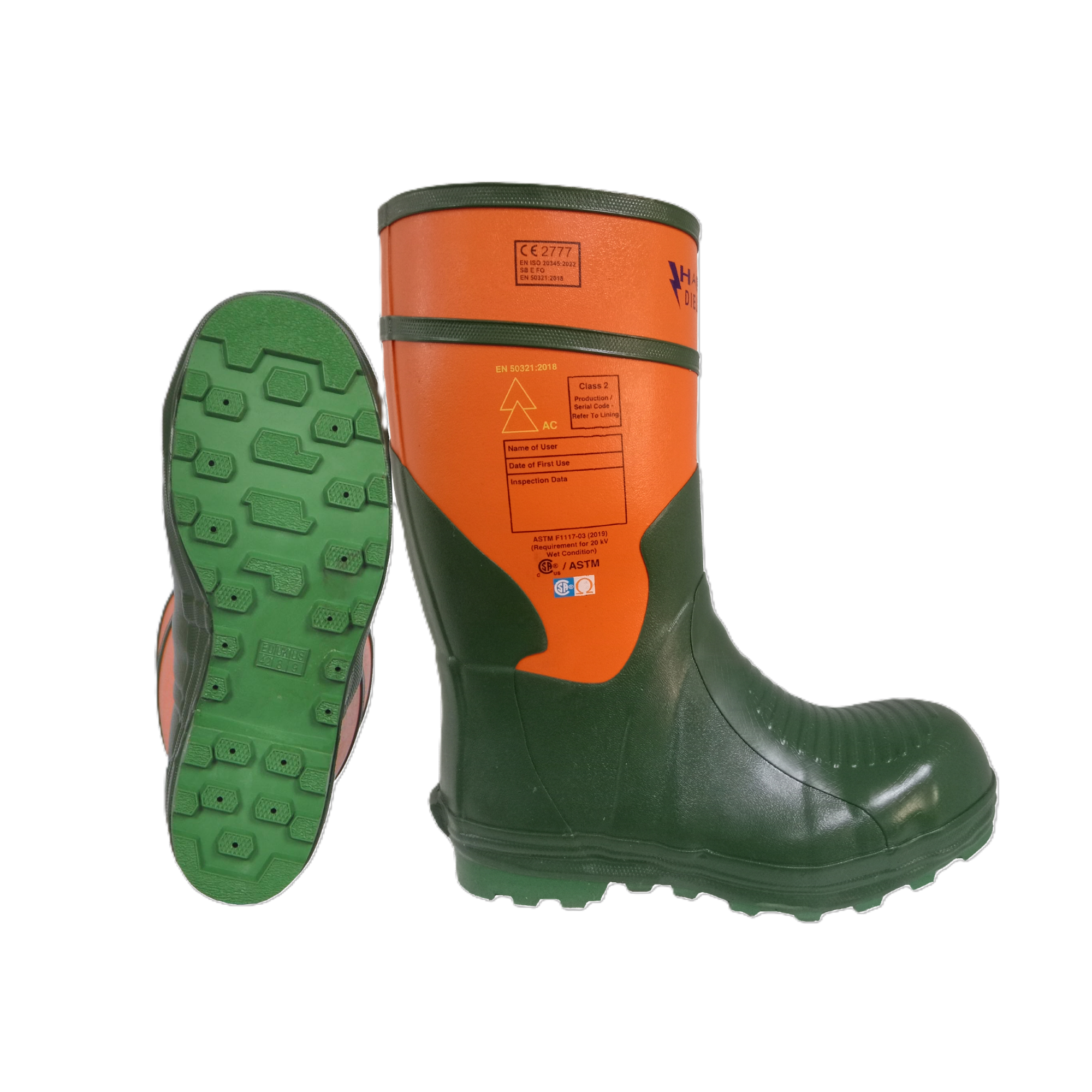

Art. 9720 HARVIK® EN ASTM F1117 20KV Dielectric (ST)

EU Conformity PDF
Colour Orange/ Green
Size range Euro : 36 – 50
US: 4 – 17
Type of construction Vulcanized Rubber Upper and Sole
Last/ Sole Pattern VSV / SNV
Specialty Tested individual boots at 20kV under wet condition
ESR protection up to 18kV
Recommendation For working environment with high voltage hazards
Power station operations
Substation (step-up/ step-down/ distribution) operations
Electrical hazards with wet condition/ water exposure
High current leakage hazards
Electrical installations
European Standard CE Approved –
EN ISO 20345: 2011 (SB E FO SRA)
EN 50321-1:2018 Class 2 (for installations with nominal voltage up to 1700V A.C. and 25,500V D.C.)
SB = Standard Basic Protection as per EN ISO 20345
SRA = Slip Resistance on ceramic tile with Sodium Lauryl Sulphate
E = Heel Energy Absorption
FO = Fuel Oil Resistant Outsole

CSA Z195-14 / ASTM F 2413-18
Grade 1 Toe protection
Compression resistance, 11kN
18 kV Electric Shock Resistance (ESR) protection

Dielectric Footwear ASTM F1117-03(2013) (min 20,000VAC)
Lining Material Selected polyester grade for electrical insulation
Comes with extra comfort and durability
Upper construction Waterproof (Electrically verified)
Reinforced rubber upper
High visibility with orange and green contrast
Easy for cleaning
Sole / Heel Electrical shock resistant sole suitable for high voltage/ current environment
Slip resistant vulcanized rubber outsole
Good abrasion resistant for extra durability
Heel energy absorption design to minimize the heel impact
Steel Toe Cap Epoxy coated toe caps for anti-corrosion
Meets EN ISO 20345 impact and compression tests
Steel Midsole Double ribbed ladder shank for improved mid foot stability and support
Chemical Resistance Sole & Upper – Good resistant towards acids and alkalis
Finishing Lacquer coating for weather protection
Packing Inner Box & 6 pairs in a carton

*Specifications of the product are subject to changes without prior notice for further enhancements.
