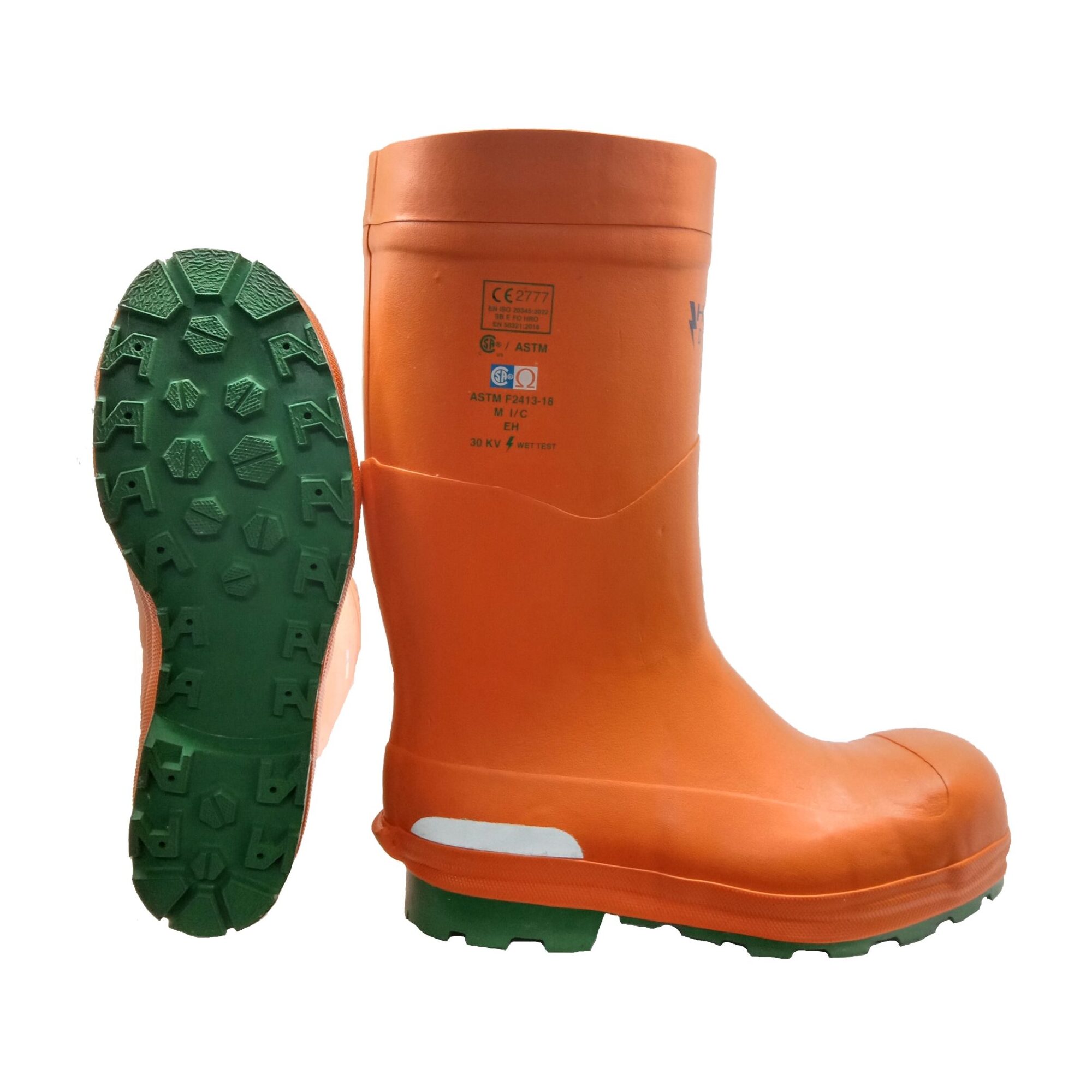

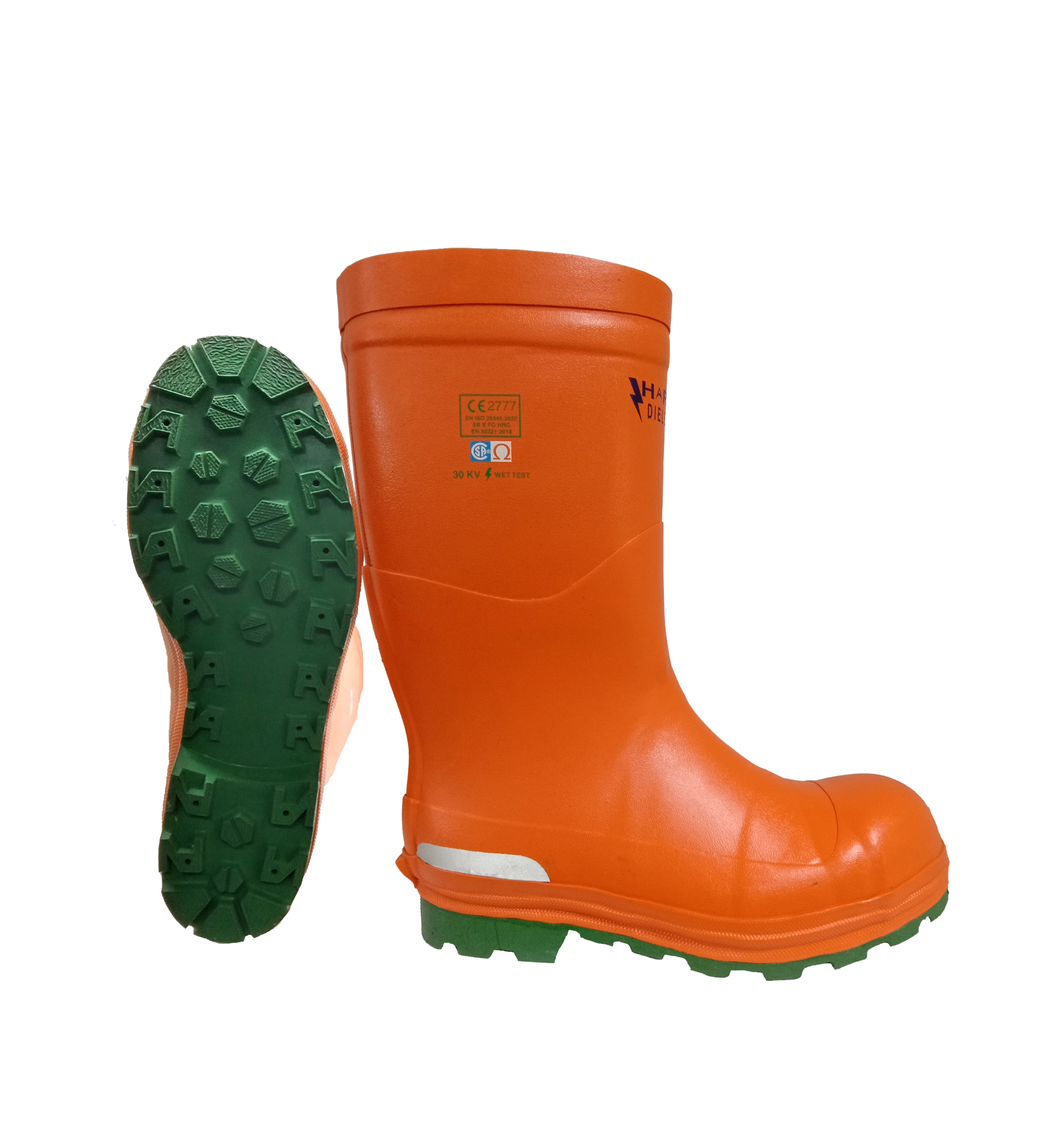

Art. 9721M HARVIK® EN ASTM F1117 30KV Dielectric (ST)

EU Conformity PDF
Specification
Colour Orange/ Green
Size range Euro : 36 – 50
Type of construction Vulcanized Rubber Upper and Sole
Last/ Sole Pattern PSV & VSV / ST
Specialty Tested individual boots at 30kV under wet condition
Recommendation For working environment with high voltage hazards
Power station operations
Substation (step-up/ step-down/ distribution) operations
Electrical hazards with wet condition/ water exposure
High current leakage hazards
Electrical installations
Compliance
European Standard CE Approved –
EN ISO 20345: 2022 (SB E FO HRO)
EN 50321-1:2018 Class 3 (for installations with nominal voltage up to
26 500V A.C.
SB = Standard basic protection as per EN ISO 20345
E = Heel energy absorption
FO = Fuel oil resistant outsole
HRO = Resistant to hot contact
SRA = Slip resistance on ceramic tile with Sodium Lauryl Sulphate
CSA Z195-14 / ASTM F 2413-18
Grade 1 Toe protection
Compression resistance, 11kN
18 kV Electric Shock Resistance (ESR) protection
ASTM F1117-03(2013) (min 20,000VAC)
Lining Material Selected polyester grade lining comes with extra comfort and durability
Upper construction Leak-proof (Electrically verified)
Reinforced rubber upper
High visibility with orange and green contrast
Easy for cleaning
Sole / Heel Electrical shock resistant sole suitable for high voltage/ current environment
Slip resistant vulcanized rubber outsole
Good abrasion resistant for extra durability
Heel energy absorption design to minimize the heel impact
Steel Toe Cap Epoxy coated toe caps for anti-corrosion
Meets CSA Z195 impact and ASTM F2413 compression tests
Chemical Resistance Sole & Upper – Good resistant towards acids and alkalis
Finishing Lacquer coating for weather protection
Packing Recyclable Polybag & inner box 4 pairs in a carton

*Specifications of the product are subject to changes without prior notice for further enhancements.
