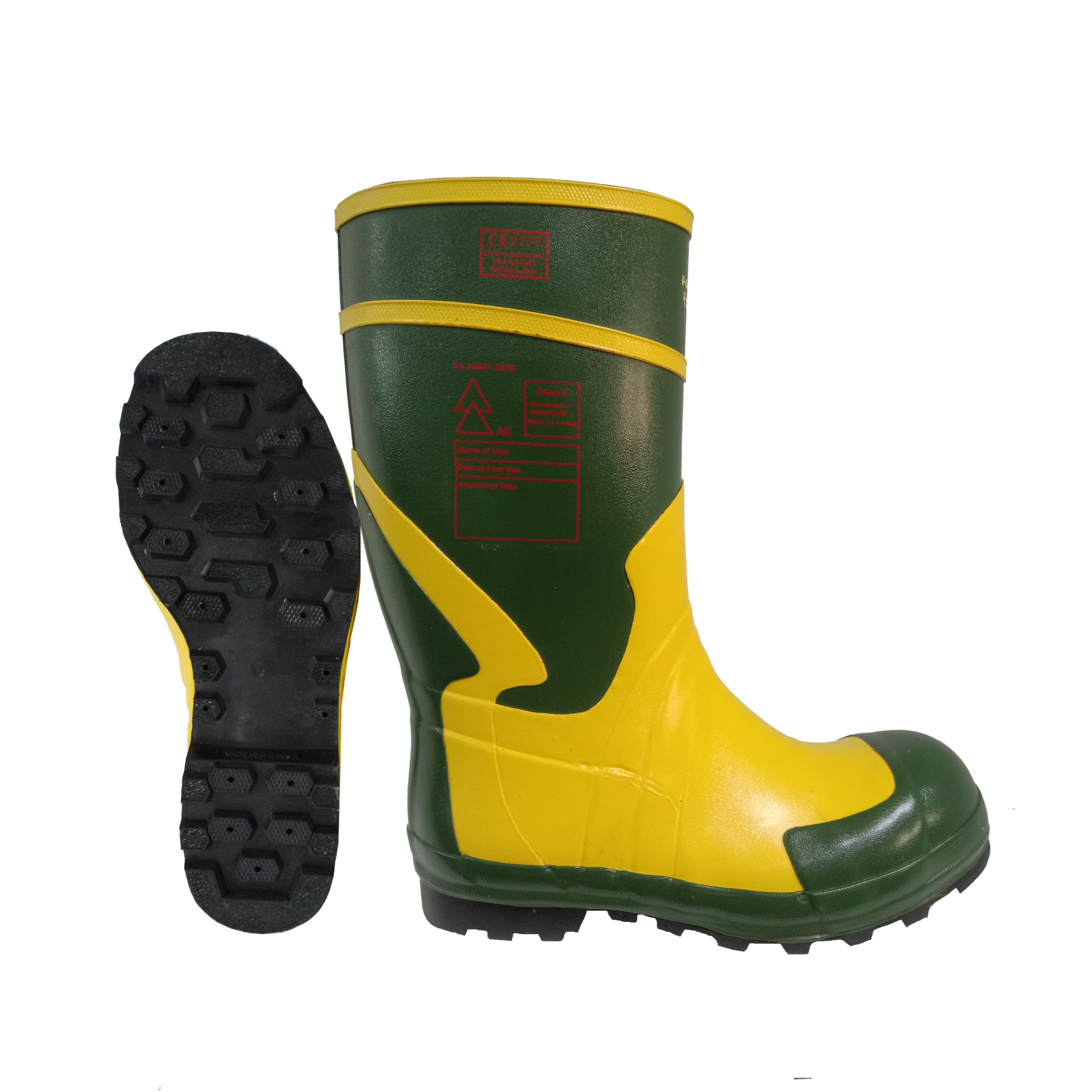

Art. 9726 HARVIK® EN 5KV Dielectric (ST)

EU Conformity PDF
Specification
Colour Yellow/ Green
Size range Euro : 36 – 50
Type of construction Vulcanized Rubber Upper and Sole
Last/ Sole Pattern VSV/SNV
Specialty Tested individual boots at 5kV (wet)
Optional testing @10kV (wet)
Recommendation For working environment with high voltage hazards
Power station operations
Substation (step-up/ step-down/ distribution) operations
Electrical hazards with wet condition/ water exposure
High current leakage hazards
Electrical installations
Compliance
European Standard CE Approved –
EN ISO 20345: 2011 (SB E FO SRA HRO)
EN 50321-1:2018 Class 0 (for installations with nominal voltage up to
1000V A.C. and 1500V D.C.
Australia Standard Approved
AS 2210.3:2019 (SB E I HRO FO SRA)
SB = Standard Basic Protection as per EN ISO 20345
SRA = Slip Resistance on ceramic tile with Sodium Lauryl Sulphate
I = Electrical Insulating Footwear
E = Heel Energy Absorption
HRO= Resistant to hot contact
FO = Fuel Oil Resistant Outsole
CSA Z195-14 / ASTM F 2413-18
Grade 1 Toe protection
Compression resistance, 11kN
18 kV Electric Shock Resistance (ESR) protection
Lining Material Selected polyester grade for electrical insulation
Comes with extra comfort and durability
Upper construction Waterproof (Electrically verified)
Reinforced rubber upper
High visibility with green and yellow contrast
Easy for cleaning
Sole / Heel Electrical shock resistant sole suitable for high voltage/ current environment
Fuel oil resistant sole suitable for inimical environment
Slip resistant vulcanized rubber outsole
Excellent abrasion resistant for extra durability
Heel energy absorption design to minimize the heel impact
Catered to enter high temperature
Inlay Sole Comfort Core 5 (CC5) inlay sole to provide extra comfort to foot
Steel Toe Cap Epoxy coated toe caps for anti-corrosion
Meets EN ISO 20345 impact and compression tests
Metal toecap provides reliable protection in cold & hot environments
Steel Shank Doubled ribbed ladder shank for improved midfoot stability and support
Chemical Resistance Sole & Upper – Good resistant towards acids and alkalis
Finishing Lacquer coating for weather protection
Packing Inner Box & 3 pairs in a carton

*Specifications of the product are subject to changes without prior notice for further enhancements.
